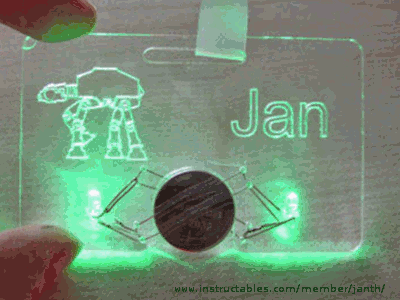

Name Tags F1 Car Fire Wheel

Upload a Project

Your file should be called: YourName-What_It_Is

Save your project somewhere you can find it

In-Class Training Videos

Video

See All In-Class Videos

RoboBloX

mBlockBrainBlockPowerBlockBlinkBlockButtonBlockWiggleBlockEyeBlockLineBlockBeepBlockMagBlock RainbowBlock LaserBlock GoBlock DriverBlock SpinBlock RollBlock JoyBlock ScanBlock TrafficBlock HotBlock KnobBlock TipBlock LetterBlock FaceBlock BatBlock ScreenBlock EarBlock FanBlock RemoteBlockMemoryBloX

Extra RoboBloX kits are for sale for students who want to build bigger projects at home.
Enrolled Students get a 50% discount on RoboBloX parts!

Projects

DragonBotPetBotWordBotGateBotSkittle SorterLaserBotJiminyCricketBotF1 Car3D PrintFire Wheel

mBlock$0

mBlock

Software based on Scratch used for programing your robots

  • PC or Mac

Instructions

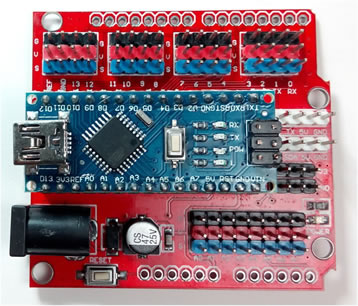

BrainBlock$40 $20

BrainBlock

A miniature computer (Arduino microcontroller) to run your robotic creations

  • 1 Arduino Nano
  • 1 Expander Board
  • 1 USB programming cable

Instructions

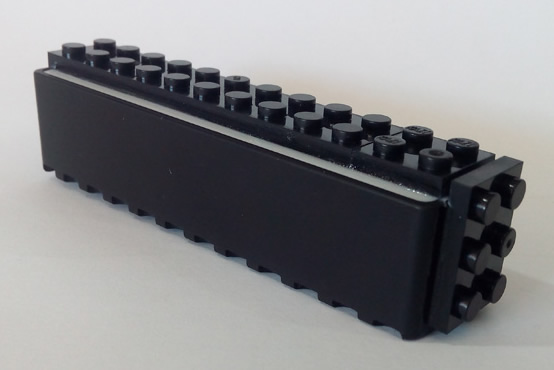

PowerBlock$30 $15

PowerBlock

A rechargeable power bank used to power robotic creations

  • 1 Battery
  • 1 PowerBank
  • 1 USB charging cable
  • 6 Bricks (2x3)

Instructions

BlinkBlock$10 $5

BlinkBlock

A block that lights up with a single LED

  • 1 LED
  • 1 Resistor (100 ohm)
  • 1 Brick (2x2)
  • 1 Cable (2 Wire)
  • 1 Connector (3 Pin)

Instructions

ButtonBlock$10 $5

ButtonBlock

A button to allow humans to interact with their robot

  • 1 Button
  • 1 Brick (2x2)
  • 1 Cable (2 Wire)
  • 1 Connector (3 Pin)

Instructions

WiggleBlock$20 $10

WiggleBlock

A motorized servo that can turn back and forth 180°

  • 1 Micro R/C Servo
  • 3 Bricks (2x2)
  • 1 Brick (2x3)

Instructions

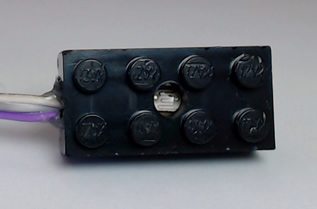

EyeBlock$10 $5

EyeBlock

A robotic eye that can detect how bright it is

  • 1 Photocell (LSR)
  • 1 Resistor (10k ohm)
  • 1 Brick (2x2)
  • 1 Cable (3 Wire)
  • 1 Connector (3 Pin)

Instructions

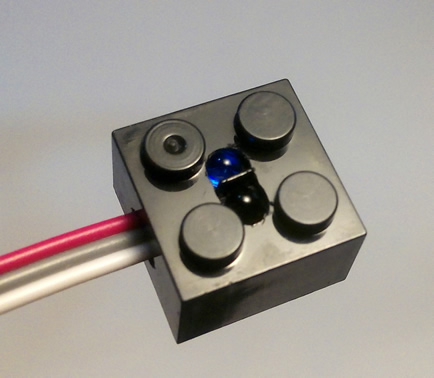

LineBlock$10 $5

LineBlock

A block that detect lines drawn on paper.
A LineBlock can be used to teach your robot to follow a line, or stay inside a circle.

Instructions

BeepBlock$10 $5

BeepBlock

A speaker so our robots can make noises

  • 1 Speaker
  • 1 Brick (2x2)
  • 1 Cable (2 Wire)
  • 1 Connector (3 Pin)

Instructions

MagBlock$10 $5

MagBlock

A block that can tell when a magnet or "magic wand" gets close

  • 1 Hall Sensor
  • 1 Brick (2x2)
  • 1 Cable (3 Wire)
  • 1 Connector (3 Pin)
  • 1 Magnet
  • 1 Resistor
  • 1 Heat Shrink Tube
  • 1 Glow Stick

Instructions

RainbowBlock$20 $10

RainbowBlock

A magical clear block that can become any colour (RGB LED)

  • 1 RGB LED
  • 3 Resistors (100 ohm)
  • 1 Brick (2x2)
  • 1 Cable (4 Wire)
  • 1 Connector (3 Pin)

Instructions

LaserBlock$10 $5

LaserBlock

A block that shines a red laser beam

  • 1 Red Laser
  • 1 Brick (2x2)
  • 1 Cable (2 Wire)
  • 1 Connector (3 Pin)

Instructions

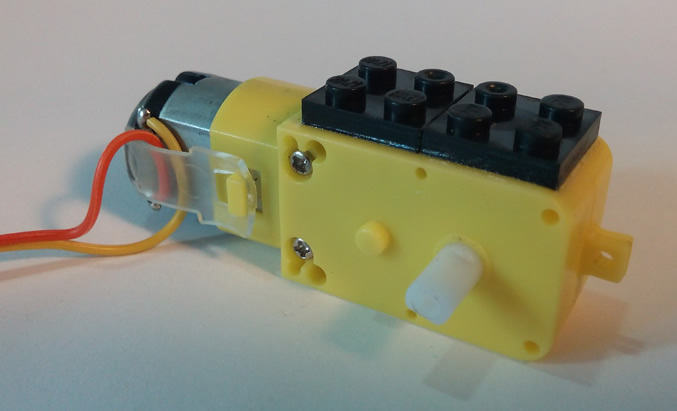

GoBlock$20 $10

GoBlock

A motorized gearbox that spins wheels, conveyor belts, and more!

  • 1 Geared DC Motor
  • 2 Brick (2x2)
  • 1 Cable (2 Wire)
  • 1 Connector (2 Pin)

Instructions

DriverBlock$10 $5

DriverBlock

You can't hook motors directly to your BrainBlock; you need a DriverBlock to connect your GoBlocks to your BrainBlock.

  • 1 Motor Driver
  • 1 Brick (2x3)
  • 1 Cable (6 Wire)
  • 1 Connector (3 Pin)
  • 2 Connectors (2 Pin)

Instructions

SpinBlock$10 $5

SpinBlock

An adapter for the GoBlock so it can spin life into your Lego creations

Instructions

RollBlock$10 $5

RollBlock

A wheel that attaches to GoBlocks to bring robots to life

Instructions

JoyBlock$20 $10

JoyBlock

A Joystick for driving and controlling your robotic creations

  • 1 Joystick
  • 1 Cable (5 wire)

Instructions

ScanBlock$30 $15

ScanBlock

An RFID tag reader

Build your own security system with a wireless (RF) card and tag reader.

The reader works with: ID cards, Key tags, Skylander figures, Bus cards, special RFID stickers, and anything with an RFID chip hidden in it!

  • 1 Blank Security Card
  • 1 RFID Keychain tag
  • 1 Cable (8 wire)
  • 1 RFID scanner

Instructions

TrafficBlock$20 $10

TrafficBlock

A mini traffic light with a red and green LED

  • 3 LEDs
  • 3 Resistors (100 ohm)
  • 1 Hole Brick (1x3)
  • 1 Cable (4 Wire)
  • 1 Connector (3 Pin)
Instructions

HotBlock$10 $5

HotBlock

A thermometer for your robot

Instructions

KnobBlock$10 $5

KnobBlock

A knob for adjusting speed, colour, movement, and much more

Instructions

TipBlock$20 $10

TipBlock

A block that helps your robot know when he is tipping

Instructions

LetterBlock$10 $5

LetterBlock

A block that can show a single letter or number

  • 1 Seven Segment Display
  • 1 Connector (9 Pin)
  • 1 Cable (8 wire)

Instructions

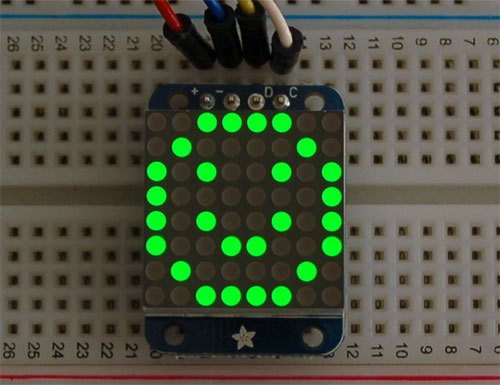

FaceBlock$20 $10

FaceBlockAn 8x8 LED Matrix - it is a like a super LetterBlock.

You can join more than one FaceBlock together to make a pair of eyes that you can animate for the Face of your robot.



Instructions

BatBlock$20 $10

BatBlock

Bats use sonar (echo location) to detect objects, now your robot can too

Instructions

ScreenBlock$30 $15

ScreenBlock

A mini computer screen

Instructions

EarBlock$10 $5

EarBlock

A microphone block to help your robot hear the world

Instructions

FanBlock$10 $5

FanBlock

A fan that help your robot blow bubbles

Instructions

RemoteBlock$20 $10

RemoteBlock

A block that can see the infrared (IR) signals from TV remotes

Instructions

And More to Come!

Coming...




















RoboBloX Projects

Combine your RoboBloX into amazing projects!

DragonBot$70 $35

DragonBot

Bring a robotic dragon to life!  Using a WiggleBlock he will be able to move his head - watching you as you try to steal his treasure.

Use a BlinkBlock to make his eyes light-up with anger if you get too close!

You will use your EyeBlock to sense how close a human is.

Finally you will add a MagBlock to detect a magic wand that puts your dragon to sleep so you can steel his treasure.

BrainBlock + WiggleBlock + BlinkBlock = DragonBot

Instructions

PetBot

PetBotStudents will have the freedom to create a unique robot. Students can make and take home a robotic dragon, pet, dinosaur, monster, spaceship, animal, or anything else they can imagine!

Students will bring their robots to life by building and then incorporating 4 RoboBloX into their design.



BrainBlock + WiggleBlock + BlinkBlock + MagBlock = PetBot

Instructions

WordBot

WordBotLearn how to send secret messages with WordBot - one letter at a time.

Combine a LetterBlock with a cardboard robot to bring WordBot to life.



Instructions

GateBot

GateBot

Create an automated gate to help all the cars park safely.

Make a project that opens a gate when the driver presses a button.



BrainBlock + WiggleBlock + TrafficBlock + ButtonBlock = GateBot

Instructions

Skittle Sorter

Skittle Sorter

Teach this little robot how to sort your Skittles and M&M's by color into separate cups.



Instructions

LaserBot

LaserBot

Build your own Laser Show!

Use a DriverBlock, 2 motors, a couple of mirrors, and of course a laser, to create a robot that projects amazing and mesmerizing geometric shapes on the wall or ceiling!

Control your show from your laptop - and make it dance in time to the music!

Instructions

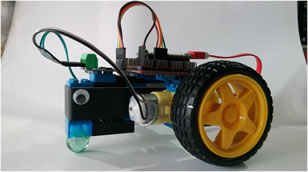

CricketBot$160 $80

Jiminy

CricketBot is a fast little Dual Drive robot.

BrainBlock + PowerBlock + DriverBlock
+ 2 x GoBlocks + 2 x RollBlocks = CricketBot!

Instructions

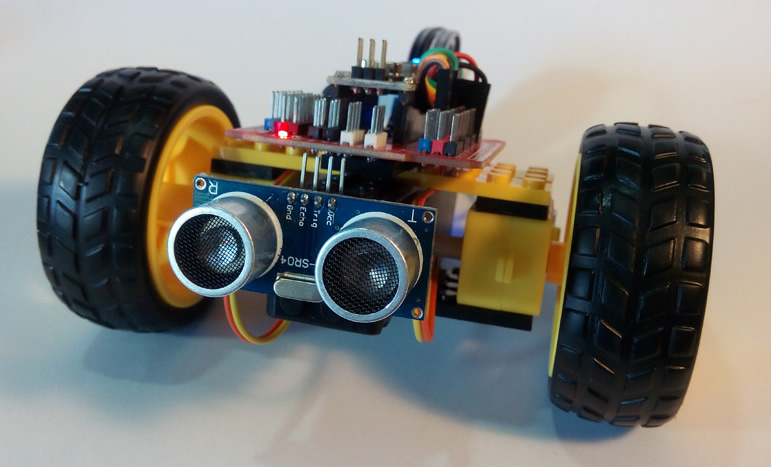

DashBot$200 $100

CricketBot

DashBot is a cool and amazing dual drive robot that is compatible with Lego.
He is smarter, tougher, and even more incredible than CricketBot.

You can add extra RoboBloX to give DashBot extra skills and abilities.

Instructions DashBot Challenges

And More to Come!
