DriverBlock

DriverBlock

Theory

You can't control motors directly from your BrainBlock;
you need a DriverBlock to connect your GoBlocks to your BrainBlock.

This is Dual Motor Driver - it can control 2 motors at the same time.

Each motor needs 2 pins to control it.
This gives 4 possible combinations, we end up with an extra combination, so we have two combinations that both stop the motor.

D5 D6 Motor A D5 D6
LOW LOW Stopped 0 0
LOW HIGH Backward 0 1
HIGH LOW Forward 1 0
HIGH HIGH Stopped 1 1
D9 D10 Motor B D9 D10
LOW LOW Stopped 0 0
LOW HIGH Backward 0 1
HIGH LOW Forward 1 0
HIGH HIGH Stopped 1 1









Assembly

  1. Materials Required

    DriverBlock block
    1 - Flat tile (smooth top) brick 2x2
    1 - Motor Driver Circuit board
    2 - Header pins (2 pins)
  2. DriverBlock
    Solder a pair of 2 pin headers onto the board.
  3. blocksandpaper
    Sand the top (smooth) side of the 2x2 brick
    (lightly for 5-10 seconds)
  4. blockq-tip
    Acetone the top (smooth) side of the 2x2 brick

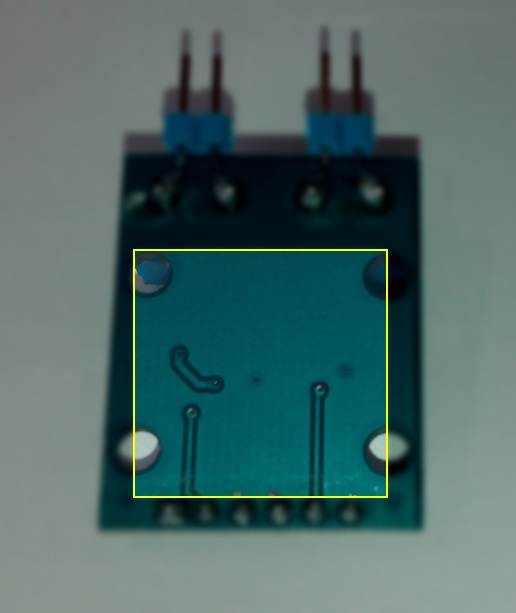

  5. driverblockq-tip
    Actetone the bottom of the DriverBlock circuit board
  6. brick

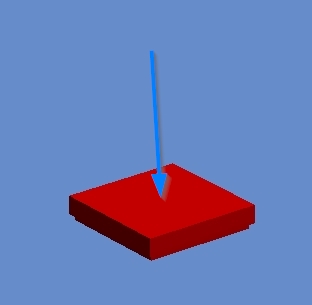

    Put a small amount of SuperGlue on the flat top side
  7. driver

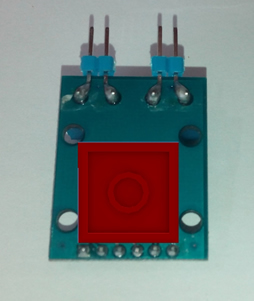

    Glue the 2x2 tile down
    Use the row of little pins at the bottom to keep it straight
  8. clock
    Press firmly (but not too hard) together for 1 minute.
    Do not wiggle, move, slide any part of the assembly while gluing.
    Wait at least 5 minutes before using it.



Connection Diagram

GoBlock



mBlock

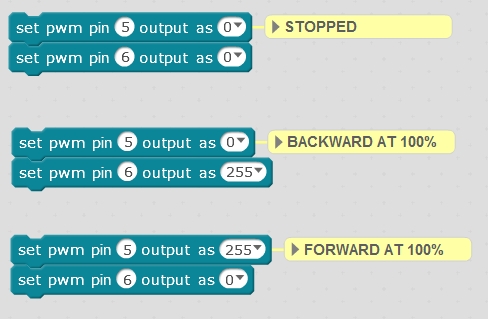

Simple On/Off control of Motor A

D5 D6 Motor A D5 D6
LOW LOW Stopped 0 0
LOW HIGH Backward 0 1
HIGH LOW Forward 1 0
HIGH HIGH Stopped 1 1

go





Advanced

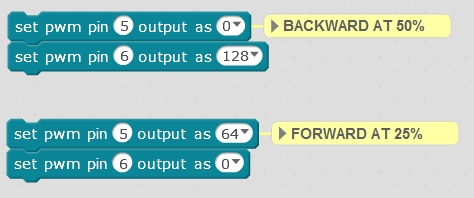

You can control the speed of the motors using PWM (Pulse Width Modulation),
but PWM only works on Pins 3, 5, 6, 9, 10, or 11
(We have chosen 5&6 and 9&10 by default)

PWM is a number out of 255. Here are a few common values:

% 0% 6% 13% 20% 25% 39% 50% 59% 75% 100% %
PWM 0 16 32 50 64 100 128 150 192 255 PWM


go

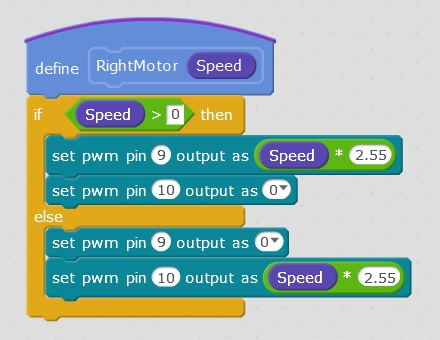

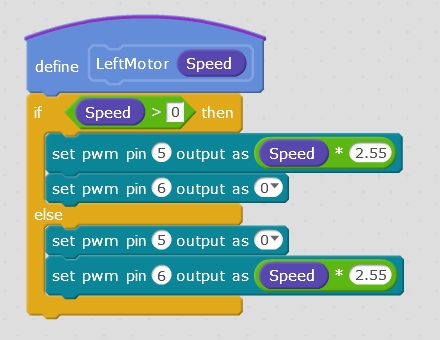

mBlock Example



You can create your own block for each motor
Speed is a number between -100 and 100
-100 is 100% speed backward
100 is 100% speed forward
0 is Stopped

We need to multiple Speed by 2.55 (100 x 2.55 = 255) to scale it so it works with a percent (0-100)

go mBlock example



Project Ideas

    1. Windmill
    2. Merry-go-round
    3. Conveyer belt
    4. Amusement park ride
    5. Ski Lift
